| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168-C |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | 1 Phase Card Prepaid PLC Electric Meter | Mounting: | BS5685 Footprint |
|---|---|---|---|
| Dimensions: | 160x112x58mm | Display: | Backlit LCD 6 Digits |
| Accuracy: | Class 1s | Com Port: | RS485, Power Line Carrier |
| High Light: | Wireless Electricity Meter Anti Tamper,1 Phase Card Prepaid Electric Meter,Class 1s Card Prepayment Electricity Meter |
||

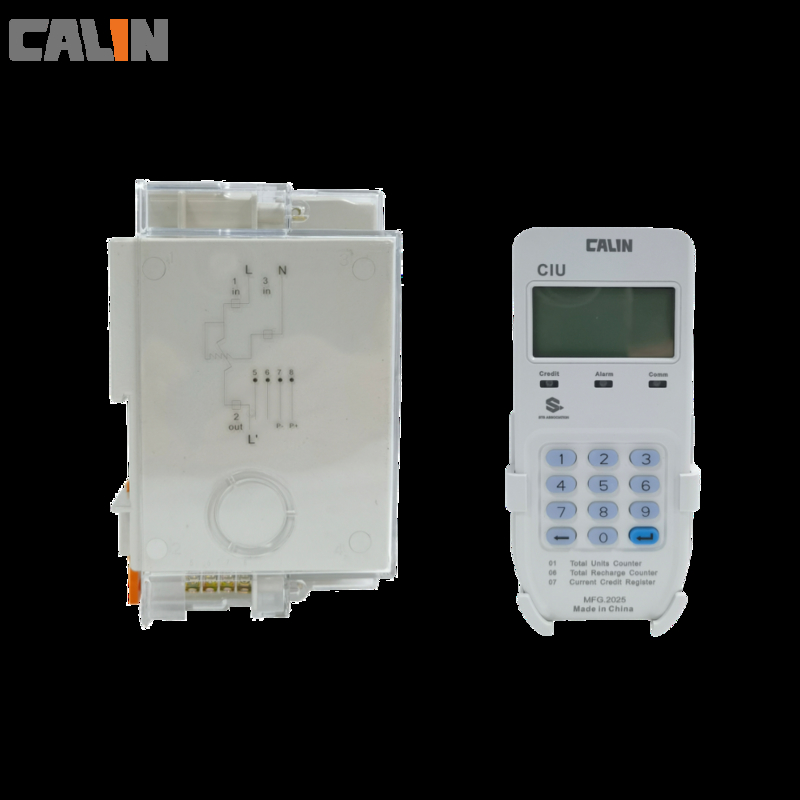

Card Prepayment Wireless Electricity Meter , 6 Digits Single Phase Kwh Meter
The PLC-G3 communication is added to the CA168-C, enabling it to be connected to an AMR/ AMM/AMI back end server for smart metering features such as real-time data readout, load management, remote tariff setting, load control by disconnection / reconnection,etc. The meter is a single phase two wires 60 Amp per phase card type prepayment electric meter that combines STS standards with 3DES security encryption technology. The meter is manufactured by IEC 62052-11, IEC62053-21 metrology criteria and ISO9001 standards, an integration of high precision technology and high quality standard. It supports flexible tariff plans on TOU (Time of Use) basis.
Features
a) STS standard encryption
b) PLC G3 communication up to 200 meters between the MCU and CIU
c) Disconnects on power threshold breach and no credit
d) Power limit and low power warning programmable
e) Measure reverse energy as positive ( SRE )
f) Anti-tamper function
g) Multi-rate and multi billing cycles
h) IEC 62056-21 and DLMS/COSEM compliant
i) Automatic meter readout remote upgrade (optional)
Utility benefits
1) Interoperable with STS prepayment system
2) Easy to install and retrofit due to BS footprint mounting
3) Meter provides various information as A, V, PF, usage freeze on daily monthly basis
4) Reduce operational and inventory costs
5) Hardware and software security protection
6) Long life time of 15 years
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|---|---|
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
