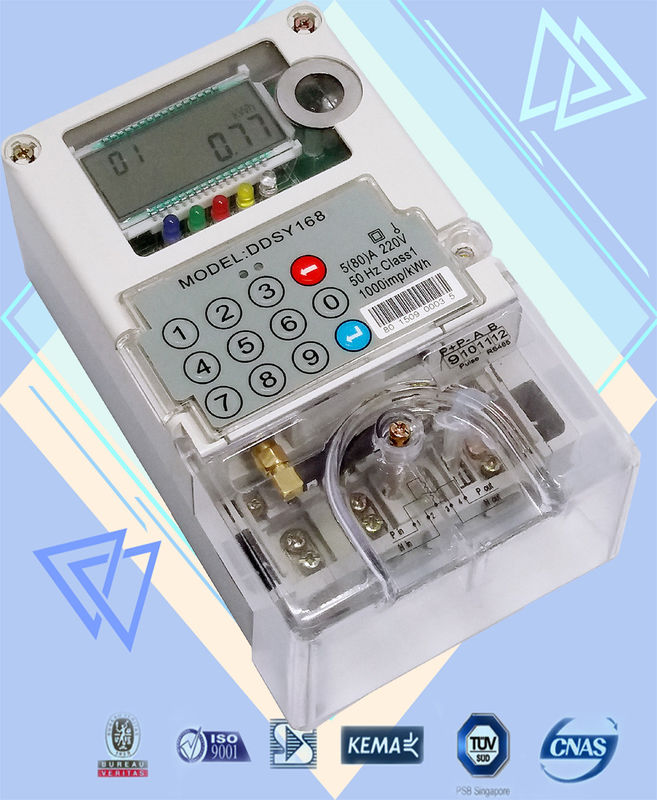

Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS

Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS

  • Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS
Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: GSM 1 Phase STS Multi-function Prepayment Meter Network: GSM EDGE EVDO GPRS
Dimensions: 160x112x58mm Mounting: British Standard(BS) 5685
Display: Backlit LCD 6 Digits+ Icons Accuracy: Class 1s
Payment Mode: Prepayment Post-payment Material: Polycarbonate
Modem: Build-in GPRS / Ethernet
High Light:

single phase kwh meter

,

single phase power meter

,

STS single phase watt hour meter

Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS



The CA168-G is our new system component for the Calin's AMI AMR solution, which integrates four functions in one device: an extremely flexible advanced electricity meter, a multi-energy data collector, a remote two-way communication node, and a powerful interface to enable end user interaction.



The CA168-G  meter has been designed to provide you with the maximum flexibility in functionality and in infrastructure needs. Covering a wide range of uses, you will be able to adapt your meter solution according to future needs.



The meter communication interfaces are based on open standards. This allows you to combine third party applications in your advanced meter infrastructure.We aim to provide you with the best cost-effective products instead of expensive high-tech fancy format. Our design principles provide you with a high quality system component which is easy to install and requires minimum maintenance across its long life time.



Main Features

1) Operates in STS prepayment mode and credit mode

2) Two way communication and interaction with a back-end central station server

3) IEC 62056-21 and DLMS/COSEM compliant

4) Tamper and fraud protection, magnetic immunity, data storage in absence of power, cover open trip and alarm

5) Multi-rate, 4 tarrifs TOU and flexible billing cycles with holiday settings

6) Preset and adjustable power limit and low credit warning

7) LED consumption rate indicator

8) 4x3 audio feedback keypad



 Utility benefits

a) Build-in latching relay and GSM wireless communication allows for local and remote load control and setting

b) Internal clock sychronize with the real-time of back-end server, providing tariff setting and contractual control features

c) Automated meter reading and remote intrusive control over customers' load

d) Easy installation especially for retrofitting with no need for extra accessories



Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II











Two Way Communication Single Phase Watt Hour Meter Polycarbonate Build - In GPRS 0
