Shenzhen Calinmeter Co,.LTD
products
products
Home > products > Single Phase Electric Meter > Commercial Single Phase Power Meter Multi - Function Smart Electric Meters

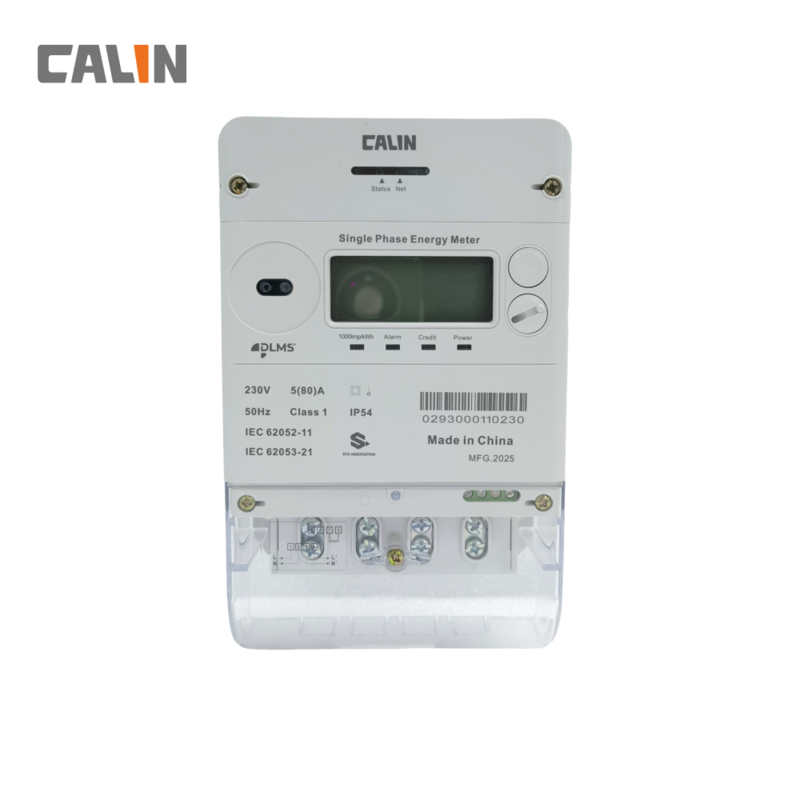

Commercial Single Phase Power Meter Multi - Function Smart Electric Meters

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA168-M

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

single phase power meter

,

single phase electronic meter

,

single phase two wires electric meter

Product Name:
Single Phase Smart Electric Multi-function Meter
Feature:
Modular Design
Dimensions:
160x112x58mm
Weight:
750 G
Display:
Backlit LCD 7 Digits Icons
Accuracy:
Class 1s
Surge Protection:
13kV 6.5kA
Material:
Polycabonate
Product Name:
Single Phase Smart Electric Multi-function Meter
Feature:
Modular Design
Dimensions:
160x112x58mm
Weight:
750 G
Display:
Backlit LCD 7 Digits Icons
Accuracy:
Class 1s
Surge Protection:
13kV 6.5kA
Material:
Polycabonate
Commercial Single Phase Power Meter Multi - Function Smart Electric Meters

Commercial Single Phase Power Meter Multi - Function Smart Electric Meters



The CA168-M is a perfect integration of high precision metrology and state-of-the-art wireless communication technology. It is a single phase two wires electric meter completed in a BS footprint mounting keypad based case with 13kV surge & lightening protection features and 30Vm of RF immunity withstand, being able to operate in very severe environment for residential and light commercial industrial applications.



The CA168-M is provided with a plug & play  module for communications . This modular design provides utility and service providers free choice of PLC/RF/GPRS communication and 3G / 4G LTE cellular data networks according to local infrastructure conditions, which greatly reduces their operational cost. The module can be easily removed and replaced without changing the entire meter. Through its wireless communication with an AMR AMI back-end server, a utility and service provider is offered freedom of management settings inclusive of ,but not limited to, free basic unit, emergency credit, repayment control, power limit, TOU rate, automatic meter readout, etc.





  Main Features

a) 4 quadrant measurement import & export Absolute / Wh, Varh, Vah

b) Prepayment and post-payment mode toggle

c) Maximum demand measurement as MD ( Optional)

d) Fraud protection against magnetic immunity, and reverse connection (SRE)

e) Data retention in outage, cover open detection

f) Surge protection against lightening

g) IEC 62056-21 and remote readout and control from the server side





 Utility benefits

1) Easy installation for retrofitting using existing wires and BS mounting

2) Load management on demand and remote with communication module

3) Reduce operational and maintenance cost

4) Choose suitable communication according to local needs

5) Flexible consumer contractual control settings



Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II
