Split Type STS Single Phase Electric Meter , Plc G3 Rf Din Rail Power Meter

Split Type STS Single Phase Electric Meter , Plc G3 Rf Din Rail Power Meter

    • Split Type STS Single Phase Electric Meter , Plc G3 Rf  Din Rail Power Meter
  • Split Type STS Single Phase Electric Meter , Plc G3 Rf  Din Rail Power Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Din Rail Single Phase STS Prepaid Meter Mounting: 35mm Din
    Dimensions: 155x120x52mm Weight: 800 G
    Accuracy: Class 1s Standard: IEC/SABS
    Commnication: RF, PLC, LoRa,
    High Light:

    single phase kwh meter

    ,

    single phase electronic meter

    Split Type STS Single Phase Electric Meter , Plc G3 Rf  Din Rail Power Meter



    The DDSY168-S is a 35 mm Din Rail mounting keypad based single phase prepayment electric meter.

    The meter works with a broad range of current 5(80)Amp and voltage -60%~ +30% V and  the rugged RF withstand of 30 Vm. It is ideal for submetering and retrofitting installations in very harsh environments.

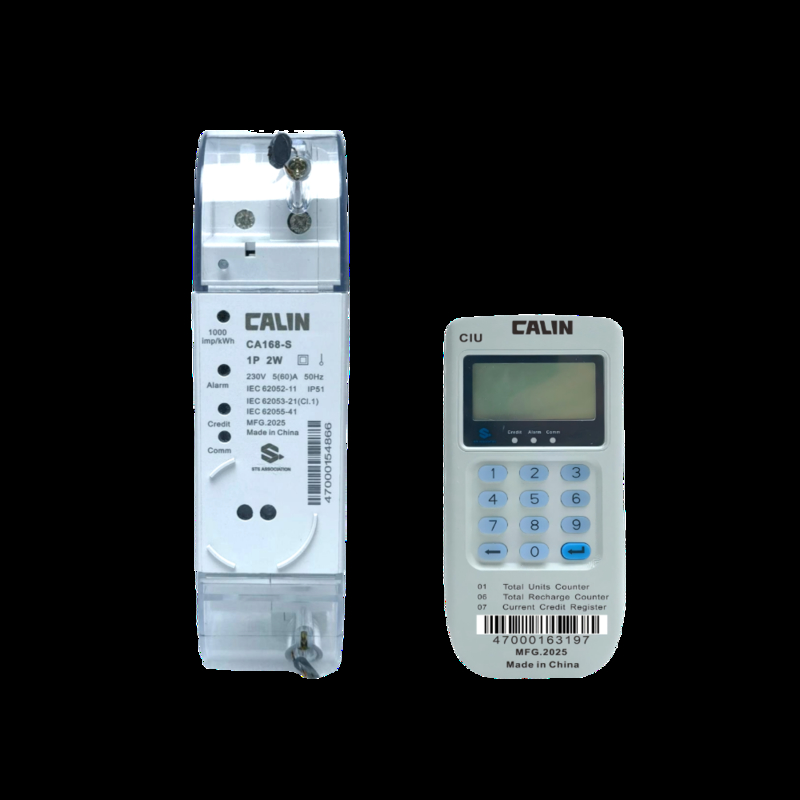

    The DDSY168 -S consists of two parts. A customer interface unit (CIU),  and a main meter, metering and control unit (MCU). The CIU is a keypad based display,  to be installed within consumers homes wherever there is a plug point. The MCU is the main meter,  installed away from consumer's home in a kiosk pavement, meter box or a pole-mounted enclosure .Prepayment encryption decryption, critical metering only happens with MCU and CIU is just for the consumer to punch in token code and toggle information displays. MCU communicates with CIU via wireless communication such as Power Line Carrier (PLC), Radio Frequency(RF), and LoRa.  This feature allows for easy inspection by utility and service providers at any time without visiting consumers' houses  and reduces the chance of tampering.



    The communication features allows the meter to speak with a back-end server in two way communication mode. A utility can do remote readout, block / unblock meters, tariff setting, emergency credit input, etc.



    Major Features

    1) Unidirectional measurement for reverse energy (SRE)

    2) STS compliant

    3) Disconnects on no credit or preset balance

    4) Disconnects on tamper detected

    5) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc

    6) Anti-fraud features

    7) Multi-rate and usage registered as Time of Use (TOU)





     User Benefits

    a) Quick and easy to install

    b) Slim-line space saving design

    c) Low operational and inventory cost

    d) Two way communication with AMR AMI server(on request)

    e) Flexible payment control through various element settings

    f) Meter provides information by inputting short codes



    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Split Type STS Single Phase Electric Meter , Plc G3 Rf  Din Rail Power Meter 0
